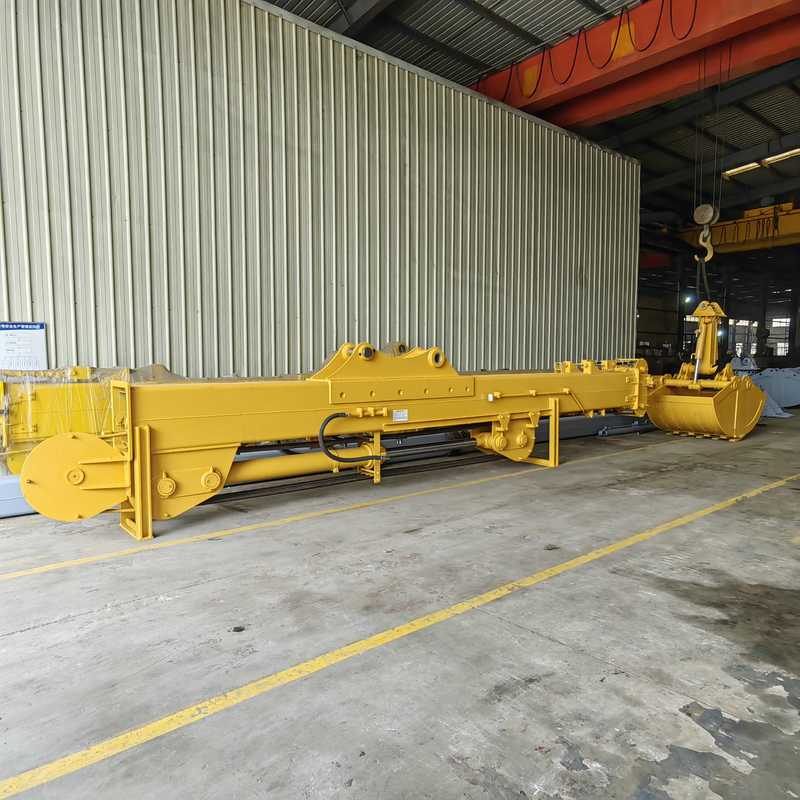

BS900 Steel Plate Board 25M Telescopic Arm for EX380 ZX330 CAT330
Product Specifications
| Attribute |
Value |
| Video Outgoing-Inspection |
Provided |
| Machinery Test Report |
Not Available |
| Warranty |
6 months |
| Weight |
2300 kg |
| Suitable Excavator (ton) |
20-50t |
| Core Components |
Bearing |
| Application |
Excavator Attachment |
| Suitable for |
10-15ton Excavator, 18-20ton Excavator |
| Color |
Yellow/Red/Gray/Green |
| OEM |
Support |
| Material |
Q355B |
| Length |
25m, 28M, 32M |
| Operation |
Forestry Project Operation |
| Quality |
High-Quality |
Excavator Telescopic Boom Overview
This product mainly consists of a fixed body, sliding body, steel wire rope and a telescopic cylinder. By changing the number of sliding bodies, an ideal working radius and vertical excavation range can be achieved. Generally used in combination with a bucket, it can complete deep pit excavation tasks, such as grabbing soil, sand or coal.
Key Advantages
- The three-section telescopic boom is made of BS900E and Q355B, which is lighter and more durable
- We use 6mm thickness for enhanced strength
- The slider is made of nylon and the pulley is made of steel with all hoses centrally lubricated
- The external hose pulley of the bucket cylinder makes hose replacement and repair more convenient
- The external hose pulley separates the hose from the main rope to avoid friction and reduce failures
- The double rope design ensures safety - even if the main rope breaks, the arm will not stretch unexpectedly
Standard Size References
| Excavator (ton) |
Max Depth (mm) |
Effective Length (mm) |
Bucket Capacity (cbm) |
| 6-10 |
10000 |
7600 |
0.2-0.3 |
| 11-15 |
14000 |
10500 |
0.4-0.6 |
| 20-30 |
16000 |
12500 |
0.8-1.5 |
| 30-35 |
20000 |
15500 |
1.3-1.66 |
| 30-35 |
25000 |
20500 |
1-1.4 |
| 40-45 |
25000 |
20500 |
1.8-2.5 |
| 40-45 |
3000 |
25100 |
1.4-2 |
Interchangeable Bucket Options
Our designs allow for interchangeable use of digging buckets and grab buckets:
- Clamshell bucket - Typically used for subway deep digging projects
- Grab bucket - More powerful than clamshell bucket, can grab stones
- Standard bucket - Specially designed for use with telescopic boom
Product Gallery
About Kaiping Zhonghe Machinery Manufacturing Co., Ltd
Established in 2018, Kaiping Zhonghe Machinery Manufacturing Co., Ltd. is a combination of manufacturing and trading, specializing in customizing different kinds of excavator boom arms and attachments. Our products, including excavator long reach booms, demolition arms, 2-3 sections telescopic arms, tunnel arms, standard/rock buckets, grapples, and rippers, have been selling well in more than 60 countries and areas.
We are located in Cuishanhu New District, Kaiping City, Jiangmen City, Guangdong Province, China, and we boast a 18000m² steel structure workshop with a large number of high precision processing equipment and a strong team of over 100 experienced technical staff, 50 welding workers with over 7 years experience, 30 senior designers, and a high-tech R&D team (10+ years on customization, 100+ technical patents). Our annual output of various types of excavator boom arms can reach up to 600 sets.
We are committed to providing our customers with products of the highest quality at a moderate price, with quick response and appropriate warranty. We strive to uphold our core principles of "Merit Quality, Sincerity Management, and Customer Satisfaction".
Certifications
Shipping & Packaging
Our products have been sold to more than 60 countries, and our transportation methods include sea transportation, land transportation, and air transportation. Our packaging is wooden box packaging or stretch film packaging. The goods will be packed before shipment and then loaded into the container to ensure the safety of the goods.
Frequently Asked Questions
1. How does the Excavator Telescopic Boom work?
The Telescopic Boom works by using hydraulic systems to extend and retract the arm, giving your excavator extra reach and versatility. It allows you to perform tasks like digging, lifting, and demolition at greater distances without moving the excavator.
2. What is the maximum reach of your Telescopic Booms?
Our excavator Telescopic Booms are available in various lengths, with maximum reach options ranging from 12 meters to over 32 meters, depending on your specific needs. We also offer custom solutions for special requirements.
3. Can the Telescopic Boom be customized to fit my excavator model?
Yes, we offer customized Telescopic Booms designed to fit your specific excavator model. Our expert team will work with you to ensure a perfect fit and optimal performance.
4. What materials are used in the construction of the Telescopic Boom?
Our Excavator Telescopic Booms are made from LG700+Q355B high-quality, heavy-duty steel, which provides strength and durability to withstand tough working conditions. We use advanced welding and fabrication techniques to ensure the boom's longevity.
